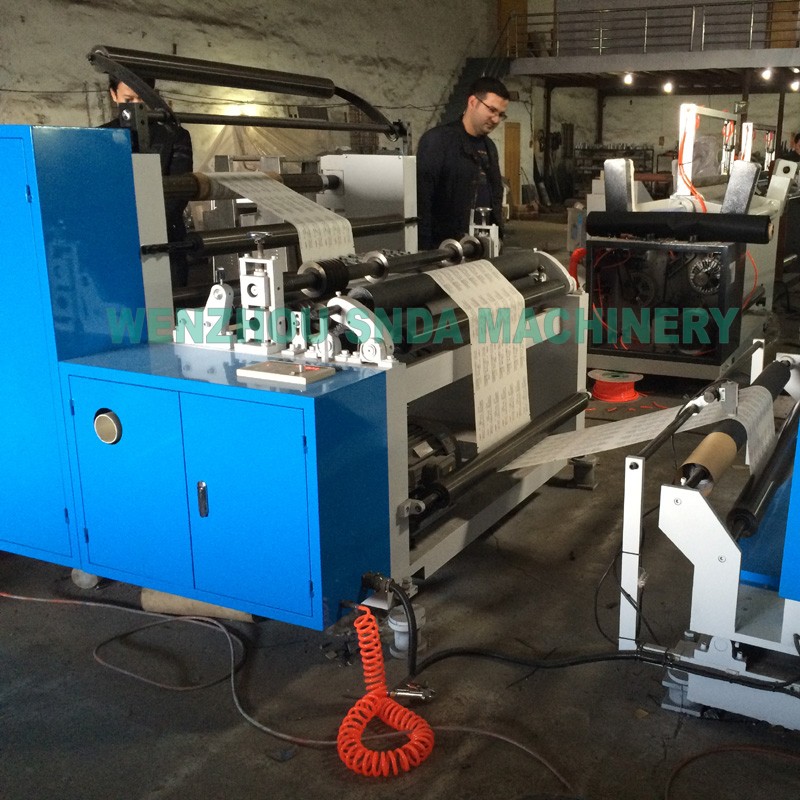

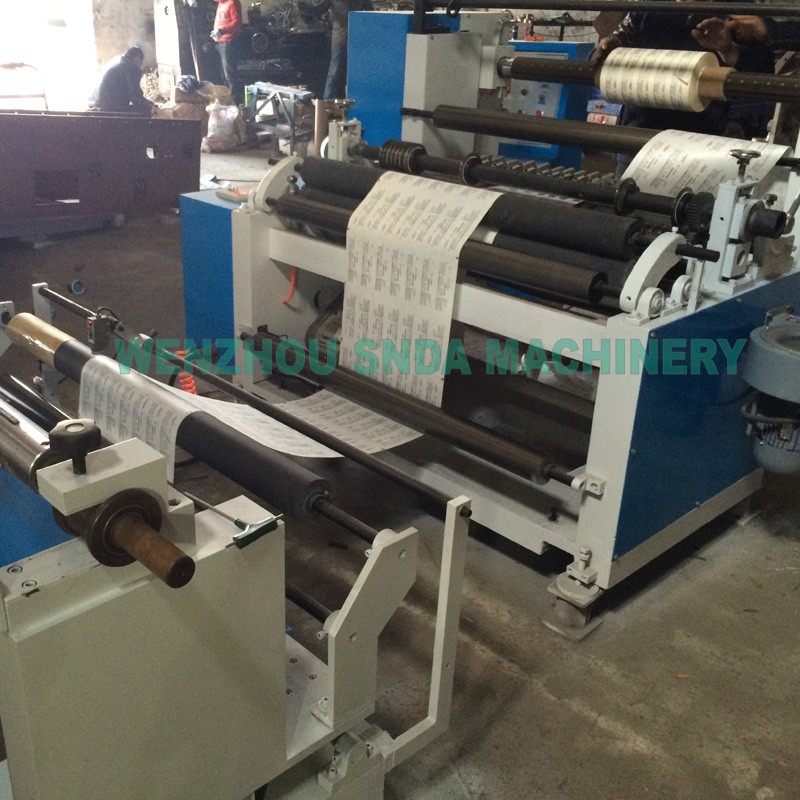

Kraft Paper Slitting Machine-horizontal type

Kraft Paper Slitting Machine-horizontal type

Kraft Paper Slitting Machine-horizontal type

Application

Big width rolls slit to several small width rolls and rewind to roll again.

Inquiry
Description LFQ-1100 LFQ-1300 LFQ-1600
Max.width of mother roll 1050mm 1250mm 1550mm
Max.diameter of mother roll 1000mm 1000mm 1000mm
Max.diameter of finished roll 500mm 500mm 500mm
Min. slitting width 30mm 30mm 30mm
Width of final roll 30-600mm 30-600mm 30-600mm
Slitting thickness 10-75um (Streight blade) better for film

10-350um (Circle blade) better for paper

Cutting Speed 5-180m/min 5-180m/min 5-180m/min
Precision for correct and error <±0.5mm <±0.5mm <±0.5mm
Total power 3.3kw 3.8kw 4.3kw
Gross weight 1800kg 2200kg 2500kg
Overall dimensions 2400x1880x1450mm 2400x2080x1450mm 2400x2280x1450mm

Simple in Design, Productive and Flexible

This slitting machine is suitable for slitting and rewinding such various roll materials as BOPP,PET,CPP,CPE,PVC,aluminum foil and paper,etc.and can cut edge separate and cut the material according to different requirements during production,this machine is a kind of horizontal slitting&rewinding machine, unwinding&rewinding shaft and located in front and back position of machine,indepent master control panel,more flexible and easier operation.

Automatic EPC for unwinding,photocell is suitable for tracking the edge and color of transparent material.

Equipped with magnetic powder brake for unwinding tension control.

Magnetic clutch control for rewinding tension control.

It can be equipped with rim charge conveying or rewinding device(which can be selected on order).

Automatic meter counting device.
