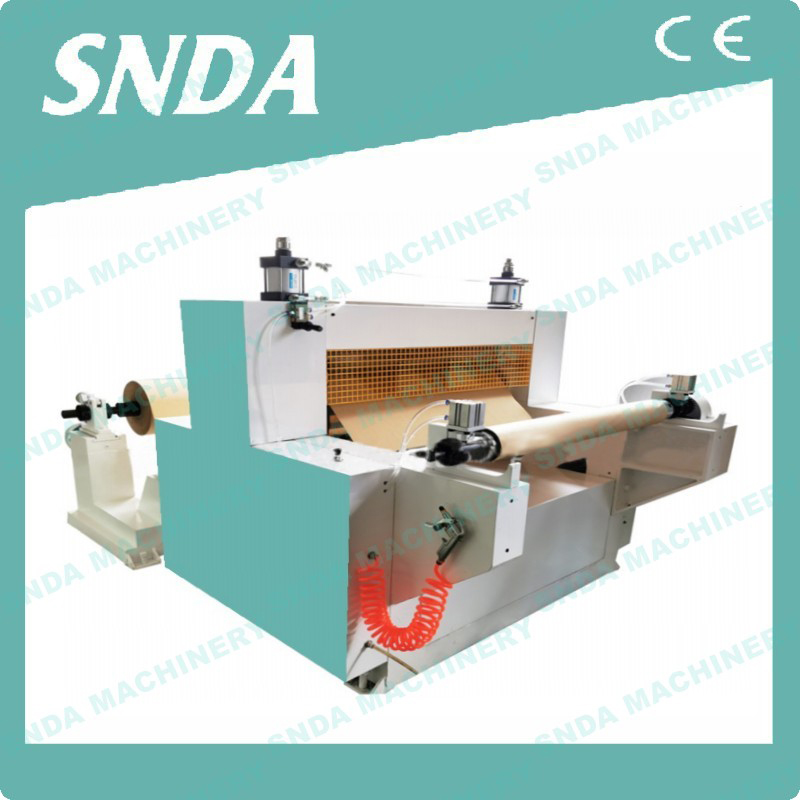

Kraft Paper Embossing Machine

Kraft Paper Embossing Machine

Kraft Paper Embossing Machine

Used as wrapping cushion sheet by E-commerce wrapping on packing fruits, flowers, ceramics, glassware, etc.
Suitable material:Kraft paper,brown paper

Model 1000
Max.Material width 1000mm
Module roller specifications  Φ380-420×1400-1600mm
Production capacity Max.50m/min
Paper thickness (Min. 60gsm)
Machine Dimension 2500X1500X1500mm
Weight of machine 1500 kg

Simple in Design, Productive and Flexible

This is our newest design kraft paper embossing machine/brown paper embosser in order to make the kraft paper with embossed bubble, and this type kraft paper is widely used in e-commerce packing industry.

Module roller specifications: Φ380-420×1400-1600mm
Embossing form: vertical upper and lower concave-convex rollers for pressing

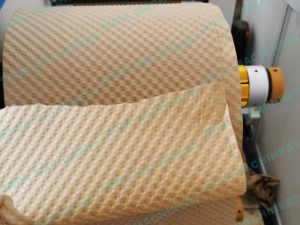

Roller pattern: semi-circular ball pattern, wave pattern, three-dimensional hexagon, four-pointed star, etc.

Various patterns can also be customized according to your requirements.

Pressure adjustment: screw pressurization or reducer pressurization

Frequency conversion speed regulation: 0-50m/min
Suitable for: paper(Min. 60gsm)

One year warranty for the whole machine
