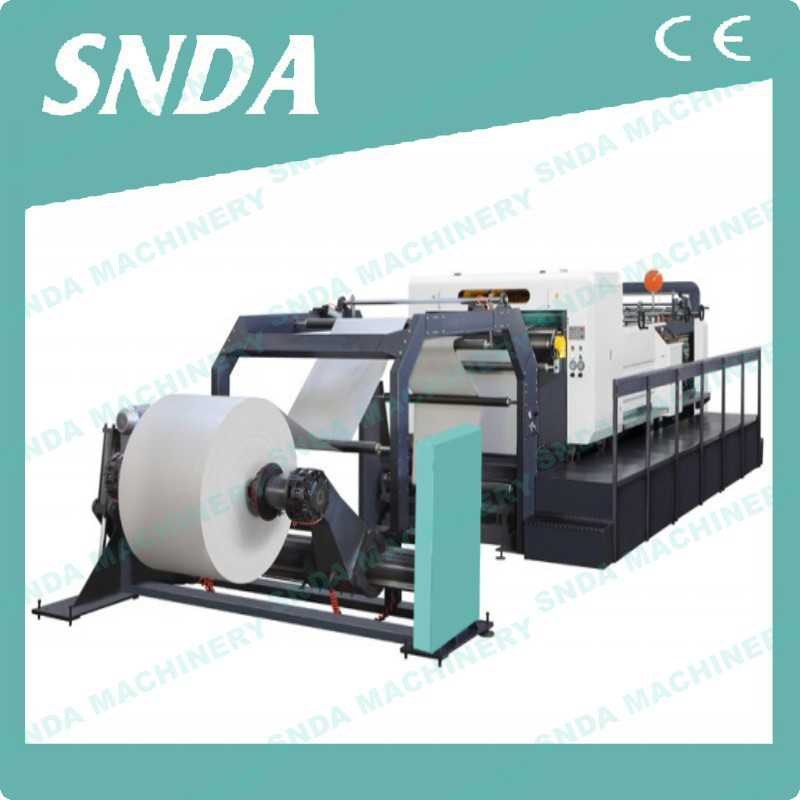

High Speed Paper Sheeting Machine

High Speed Paper Sheeting Machine

High Speed Paper Sheeting Machine

High Speed Paper Sheeting Machine

Application
Widely applied to cardboard, coated paper, kraft paper, culture paper, offset paper, glossy photo paper, gold and silver cardboard.
Suitable material:Kraft paper,brown paper

Inquiry
Model HQ-H1400 HQ-H1700
Reference weight of cutting paper 50-500g/m2 50-500g/m2
Max.Diameter of paper 1650mm(65〃)Max 1650mm(65〃)Max
Max.Width of paper 1400mm(55〃)Max 1700mm(67〃)Max
Total power 25KW 28KW
Cutting length 400-1600mm 400-1600mm
Cutting accuracy +/-0.4mm +/-0.4mm
Maximum cutting speed 300cuts/min 300cuts/min
Maximum cutting meter speed 300m/min 300m/min
Atmospheric pressure 0.8MPa 0.8MPa
Power supply AC380V/220Vx50HZ AC380V/220Vx50HZ
Total weight 11000kg 13000kg
Dimensions 12m×3.9m×2.35m 12m×4.2m×2.35m

Simple in Design, Productive and Flexible

Servo precision double helix high speed paper sheeter/paper sheeting machine apply the advanced technology of Germany and Italy, combining with the rich experience and leading manufacturing technology of our senior engineers to build and launch a new generation of sheet cutter equipment.

This high speed paper roll to sheet cutting machine adopts double helix design , the edge of cutting paper is smooth without crude or powder .

  • This machine is economical paper sheeter, adopts computer control and AC servo motor drive, with fast and stable cutter; hob-style design, high cutting precision; long service life. Touch screen computer control interface, beautiful and easy to use.Rational design of anti Cocker, to ensure smooth paper.
  • By AC servo motor, pull the paper through the synchronous belt drive motor,inverter motor drives the main drag, to provide motive pow.
  • Upper blade adopts the British SHM + cutter knife method,effectively reducing the load and the noise when the cutter in order to extend the life of the cutter. Under the knife block made of cast iron are integrally molded, and then precision machined, with good shock absorption, good stability.
  • Winding tension system uses constant torque winding, rewinding guarantee finished roll elastic appropriate, flush with the end face of the film roll.
  • Touchscreen interface can directly accept operator commands, parameter setting and adjustment and display various operating parameters; signal sensor automatically recorded by the PLC after cutting the length of the film roll, roll diameter and a variety of motion, to achieve equipment automatic control
