Application
Used as wrapping cushion by E-commerce wrapping on packing fruits, flowers, ceramics, glassware, etc.
Suitable material: Kraft paper, brown paper,

Inquiry
Machine model SD-FD500
Max material width 470mm
Machine working speed 200m/min
Unwinding diameter 0-1200mm
Stacking system By conveyor
Unwinding stand weight 1 Ton
Unwinding shaft 3” inflatable air shaft
Machine size 3500*1200*1600mm(LxWxH)
Machine weight 2000KG
Power supply 380V 3 Phase

Simple in Design, Productive and Flexible

Description:

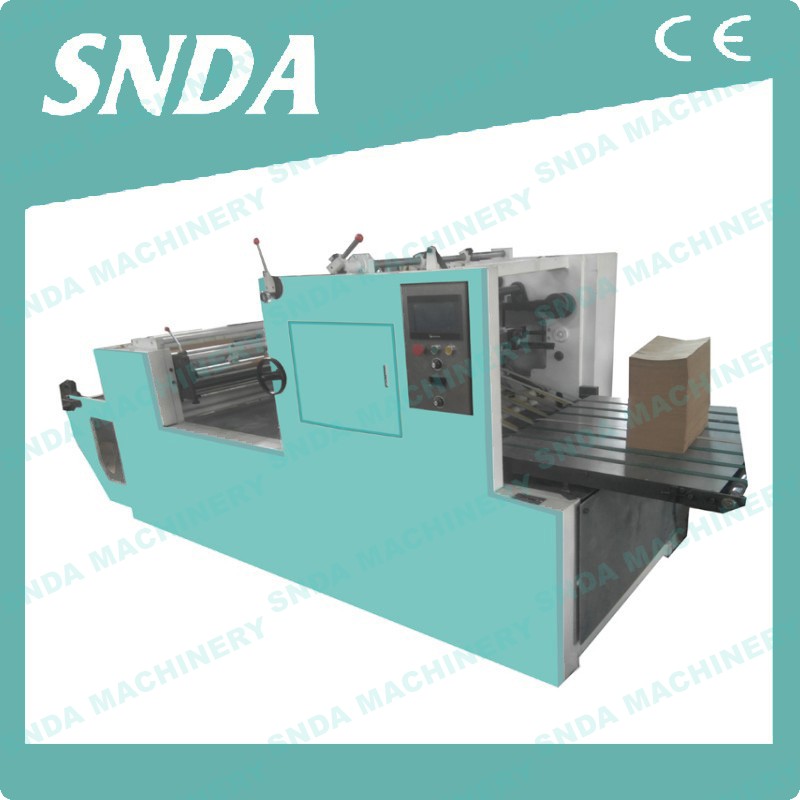

This Fanfold Kraft Paper Perforated Cutting and Folding Machine or we say it is fanfold kraft paper perforating and folding machine,it is our newest design for making the kraft paper roll for paperEZ,Ranpak company.

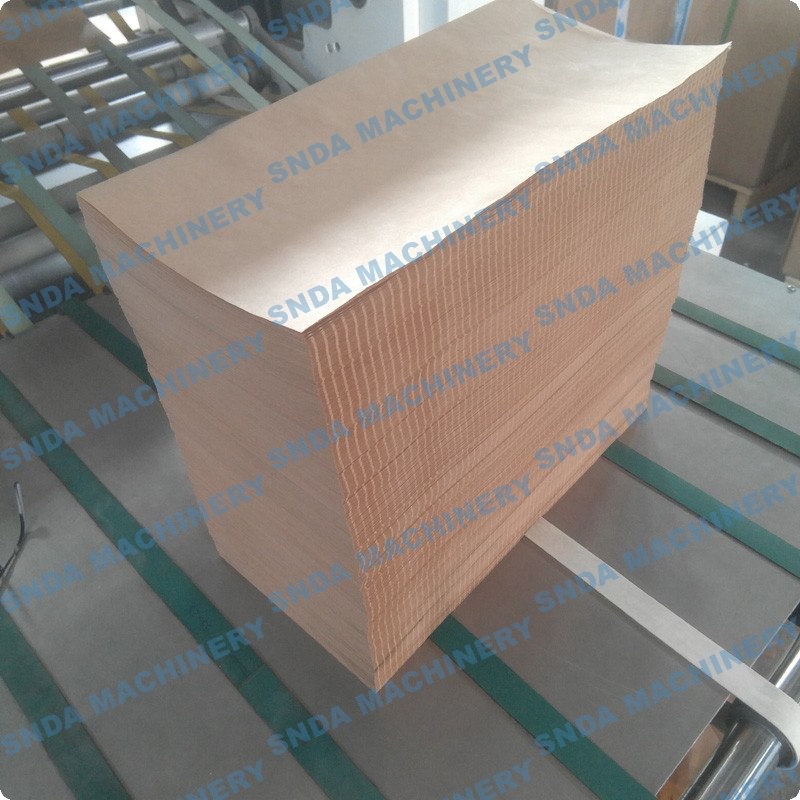

The kraft paper roll get perforated cutting and folding by our machine automatically and stack to a pile to be collected.

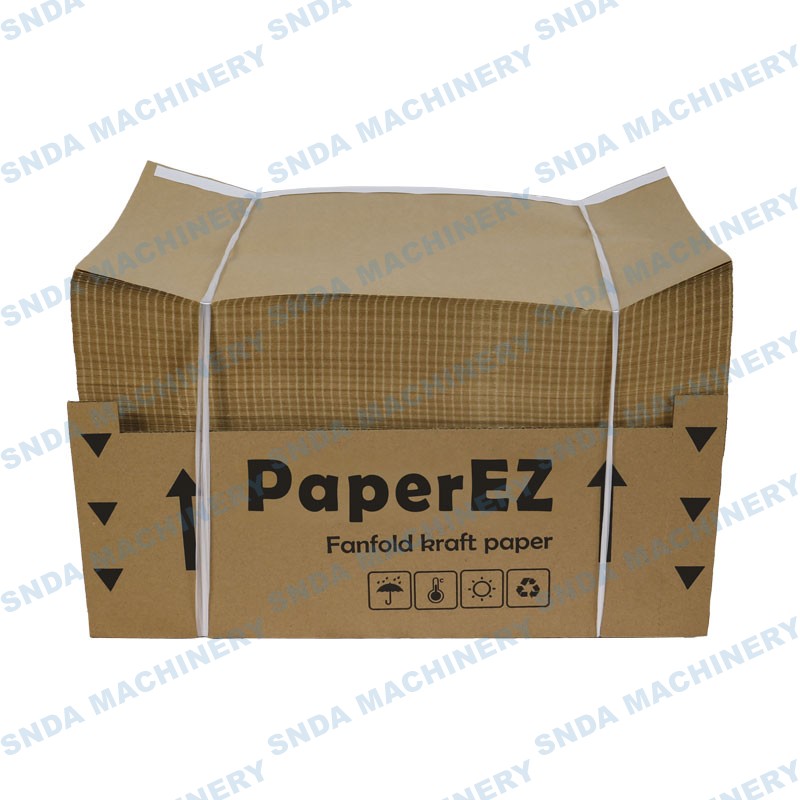

The finished paper is in folding type to be fed to the packing/wrapping machine,and form a special type of paper cushion,paper sheet,these final products was widely used in e-commerce packing industry.
