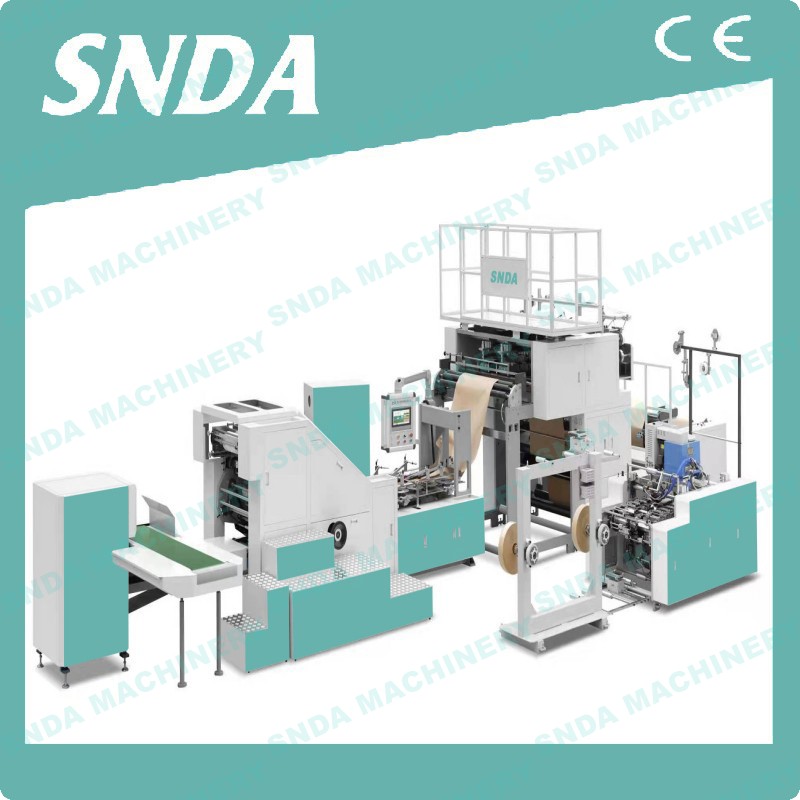

Automatic Paper Handle Bag Making Machine

Automatic Paper Handle Bag Making Machine

Automatic Paper Handle Bag Making Machine


Paper bag,paper handle bag,paper shopping bag,KFC paper bag,take away paper bag

Suitable material:Kraft paper,brown paper

Model FA220
Cutting Length (total) 230-370mm
Paper Bag Width (total) 140-220mm
Bottom Width 60-140mm
Paper gsm (total) 50-140g/㎡
Material Width (total) 410-770mm
Paper Material Diameter 1300mm
Paper Core Inner Diameter 76mm
Handle Patch Length 152mm
Handle Patch Width 50mm
Paper Rope Spacing 75mm
Paper Handle Rope Diameter 3-5mm
Handle Patch Paper Roll Width 100mm
Handle Paper Roll Diameter 1200mm
Handle Patch Paper Weight 100-135g/㎡
Mechanical Speed 30-200pcs/min
Paper Bag Production Speed 30-18pcs/min
Handle Speed 30-150pcs/min
Cutter Method Pinking
Total Power 380V/ 3Phase 4Line 28kw
Total Weight 15000Kg
Machine Overall Dimension 11000*4400*1800mm

Simple in Design, Productive and Flexible

Performance and use

Fully automatic square bottom paper handle bag machine is used to produce hand-held paper bags with hand handles. This automatic paper shopping bag machine is especially suitable for the bulk production of shopping bags in food and clothing industries. The whole process is done simultaneously at once. This automatic paper bag machine adopts Japan Mitsubishi imported high-speed motion controller (CPU), through the high-speed control servo operation, to ensure the stability of motor,the machine is the majority of printing and packaging manufacturers preferred automatic portable square bottom paper bag equipment.

Main feature

  • Using touch screen man-machine interface, the operation function is clear at a glance, easy to control
  • Adopt the Japan Mitsubishi controller, operation stability
  • Japan Mitsubishi servo motor with German Sick color standard eye correction, accurate tracking printing bag size
  • The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.
  • The raw material correction adopts servo motor to reduce the adjustment time of paper roll alignment.
